Spring-boot(mysql-mybatis-aws s3(cloudFront) + Vue.js 를 활용한 파일 업로드 하기 - 백엔드 구성

https://loy124.tistory.com/204 (s3 서버 구축하기)

https://loy124.tistory.com/205?category=768865 (s3 CloudFront와 연동하기)

기초 셋팅

https://loy124.tistory.com/206

백엔드 구성편

https://loy124.tistory.com/207

프론트 구성편

https://loy124.tistory.com/208

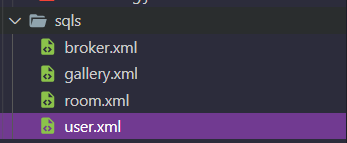

sqls의 galley.xml



gallery.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<!-- bit.com.a.dao.BbsDao -->
<mapper namespace="bit.com.a.gallery.GalleryDao">

  <insert id="upload" parameterType="bit.com.a.gallery.GalleryDto" useGeneratedKeys="true" keyProperty="id">
    INSERT INTO gallery(title, file_path) VALUES(#{title}, #{filePath})
  </insert>

  <select id="getImageList" resultType="bit.com.a.gallery.GalleryDto">
    SELECT file_path, title from gallery
  </select>

  <!-- <select id="updateImage" parameterType="bit.com.a.gallery.GalleryDto">
    Update gallery set where
  </select> -->

</mapper>





S3Service.java (aws S3에접속하여 해당 서비스에서 실제 파일을 업로드한다)



실제 파일은 S3에 올라가고

db에는 파일의 주소가 올라가는 방식이다



@value는 application.properties에서 값을 가져온다.

package bit.com.a.s3;

import java.io.IOException;
import java.time.LocalDateTime;

import javax.annotation.PostConstruct;

import com.amazonaws.auth.AWSCredentials;
import com.amazonaws.auth.AWSStaticCredentialsProvider;
import com.amazonaws.auth.BasicAWSCredentials;
import com.amazonaws.services.s3.AmazonS3;
import com.amazonaws.services.s3.AmazonS3ClientBuilder;
import com.amazonaws.services.s3.model.CannedAccessControlList;
import com.amazonaws.services.s3.model.PutObjectRequest;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Service;
import org.springframework.web.multipart.MultipartFile;

/**
 * S3Service
 */
@Service
public class S3Service {

  public static final String CLOUD_FRONT_DOMAIN_NAME = "https://" + "CLOUDFRONT의 주소" + "/";

  private AmazonS3 s3Client;

  @Value("${cloud.aws.credentials.accessKey}")
  private String accessKey;

  @Value("${cloud.aws.credentials.secretKey}")
  private String secretKey;

  @Value("${cloud.aws.s3.bucket}")
  private String bucket;

  @Value("${cloud.aws.region.static}")
  private String region;

  public S3Service() {

  }

  @PostConstruct
  public void setS3Client() {
    AWSCredentials credentials = new BasicAWSCredentials(this.accessKey, this.secretKey);

    s3Client = AmazonS3ClientBuilder.standard().withCredentials(new AWSStaticCredentialsProvider(credentials))
        .withRegion(this.region).build();
  }

  public String upload(MultipartFile file) throws IOException {
    String fileName = file.getOriginalFilename();

    s3Client.putObject(new PutObjectRequest(bucket, fileName, file.getInputStream(), null)
        .withCannedAcl(CannedAccessControlList.PublicRead));

    return fileName;
  }

  public String upload(String currentFilePath, MultipartFile file) throws IOException {
    // 고유한 key 값을 갖기위해 현재 시간을 postfix로 붙여줌
    // SimpleDateFormat date = new SimpleDateFormat("yyyymmddHHmmss");
    String fileName = file.getOriginalFilename() + "-" + LocalDateTime.now();
    // + date.format(new Date());

    // key가 존재하면 기존 파일은 삭제
    if ("".equals(currentFilePath) == false && currentFilePath != null) {
      boolean isExistObject = s3Client.doesObjectExist(bucket, currentFilePath);

      if (isExistObject == true) {
        s3Client.deleteObject(bucket, currentFilePath);
      }
    }

    // 파일 업로드
    s3Client.putObject(new PutObjectRequest(bucket, fileName, file.getInputStream(), null)
        .withCannedAcl(CannedAccessControlList.PublicRead));

    return fileName;
  }

}





dto 생성하기



GalleryDto.java



package bit.com.a.gallery;

public class GalleryDto {
  private Long id;
  private String title;
  private String filePath;
  private String imgFullPath;

  public GalleryDto() {

  }

  public GalleryDto(Long id, String title, String filePath, String imgFullPath) {
    this.id = id;
    this.title = title;
    this.filePath = filePath;
    this.imgFullPath = imgFullPath;
  }

  @Override
  public String toString() {
    return "{" + " id='" + id + "'" + ", title='" + title + "'" + ", filePath='" + filePath + "'" + ", imgFullPath='"
        + imgFullPath + "'" + "}";
  }

  public Long getId() {
    return this.id;
  }

  public void setId(Long id) {
    this.id = id;
  }

  public String getTitle() {
    return this.title;
  }

  public void setTitle(String title) {
    this.title = title;
  }

  public String getFilePath() {
    return this.filePath;
  }

  public void setFilePath(String filePath) {
    this.filePath = filePath;
  }

  public String getImgFullPath() {
    return this.imgFullPath;
  }

  public void setImgFullPath(String imgFullPath) {
    this.imgFullPath = imgFullPath;
  }

}





GalleryDao.java



package bit.com.a.gallery;

import java.util.List;

import org.apache.ibatis.annotations.Mapper;
import org.springframework.stereotype.Repository;

@Mapper
@Repository
public interface GalleryDao {
  public int upload(GalleryDto galleryDto);

  public List<GalleryDto> getImageList();

}





GalleryService.java



package bit.com.a.gallery;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;

/**
 * GalleryService
 */
@Service
@Transactional
public class GalleryService {

  @Autowired
  GalleryDao galleryDao;

  public int upload(GalleryDto galleryDto) {
    System.out.println("dao");
    System.out.println(galleryDto.toString());
    return galleryDao.upload(galleryDto);
  }

  public List<GalleryDto> getImageList() {
    return galleryDao.getImageList();
  }

}



GalleryController.java

package bit.com.a.gallery;

import java.io.IOException;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.web.bind.annotation.GetMapping;

import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.multipart.MultipartFile;

import bit.com.a.s3.S3Service;

/**
 * GalleryController
 */

@RestController
@RequestMapping("/api/gallery")
public class GalleryController {

  //
  @Autowired
  private GalleryService galleryService;

  @Autowired
  private S3Service s3Service;

  @PostMapping("/upload")
  public String execWrite(GalleryDto galleryDto, MultipartFile files) throws IOException {
    System.out.println(files);
    // for (int i = 0; i < files.length; i++) {
    String imgPath = s3Service.upload(galleryDto.getFilePath(), files);
    galleryDto.setFilePath("https://" + "dixo0q5vi6g16.cloudfront.net" + "/" + imgPath);
    // }
    return galleryService.upload(galleryDto) > 0 ? "OK" : "FAIL";
  }

  @GetMapping("/getImageList")
  public List<GalleryDto> getImageList() {
    return galleryService.getImageList();
  }


}







백엔드 구성 완료
